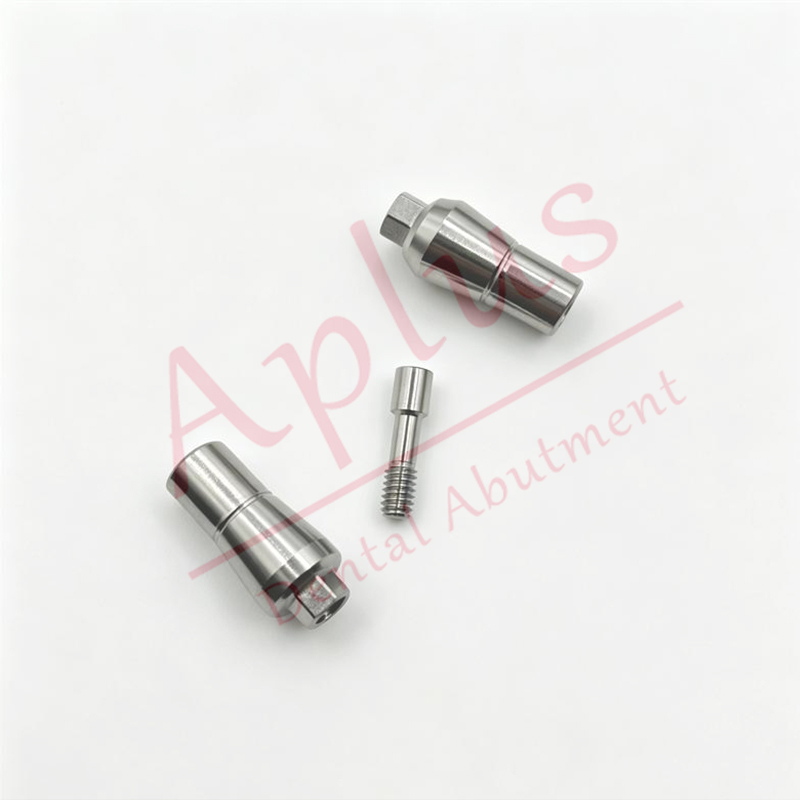

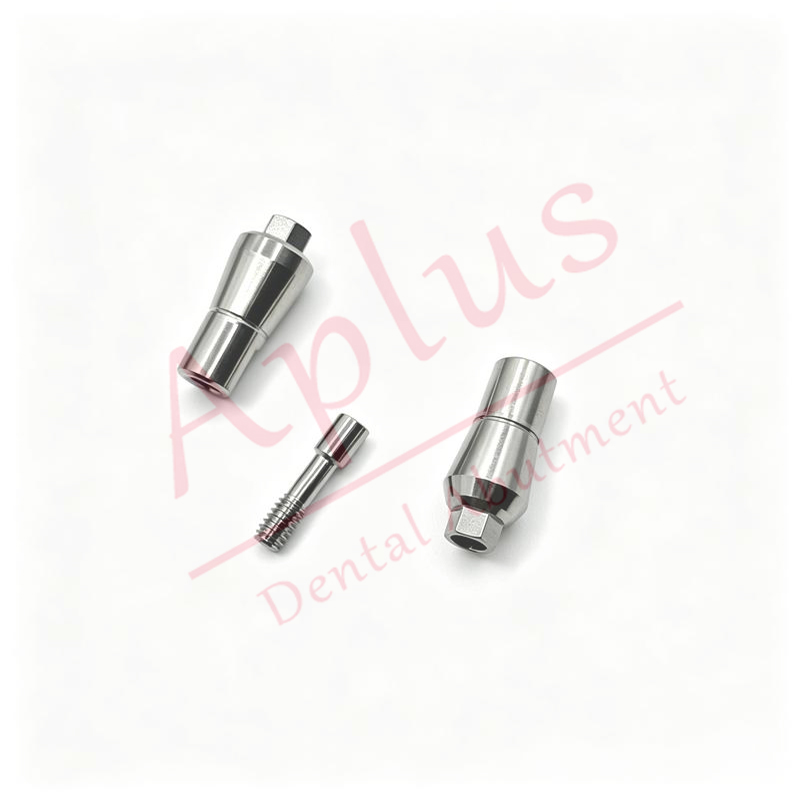

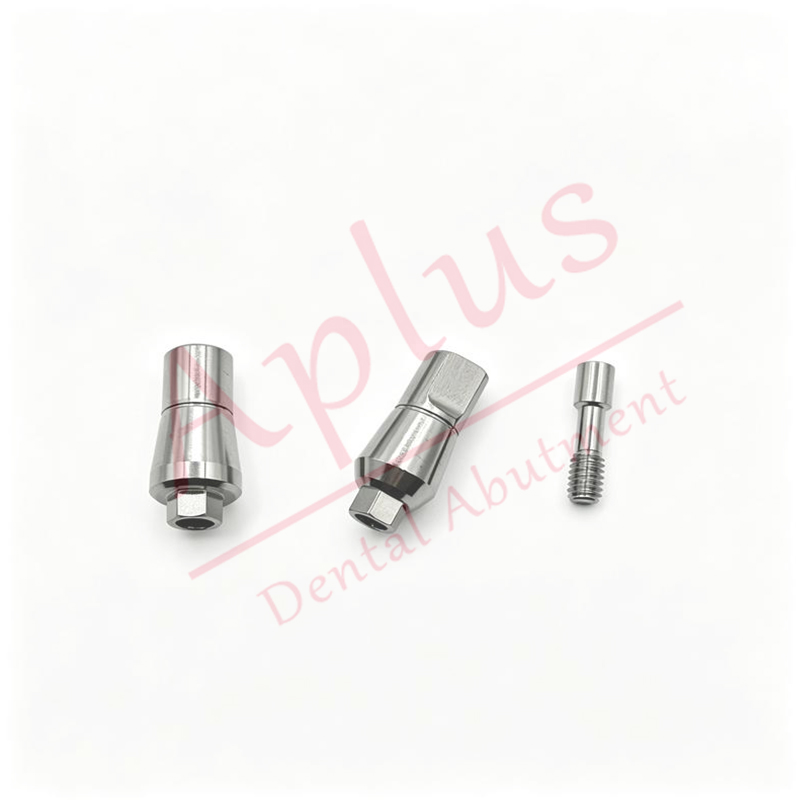

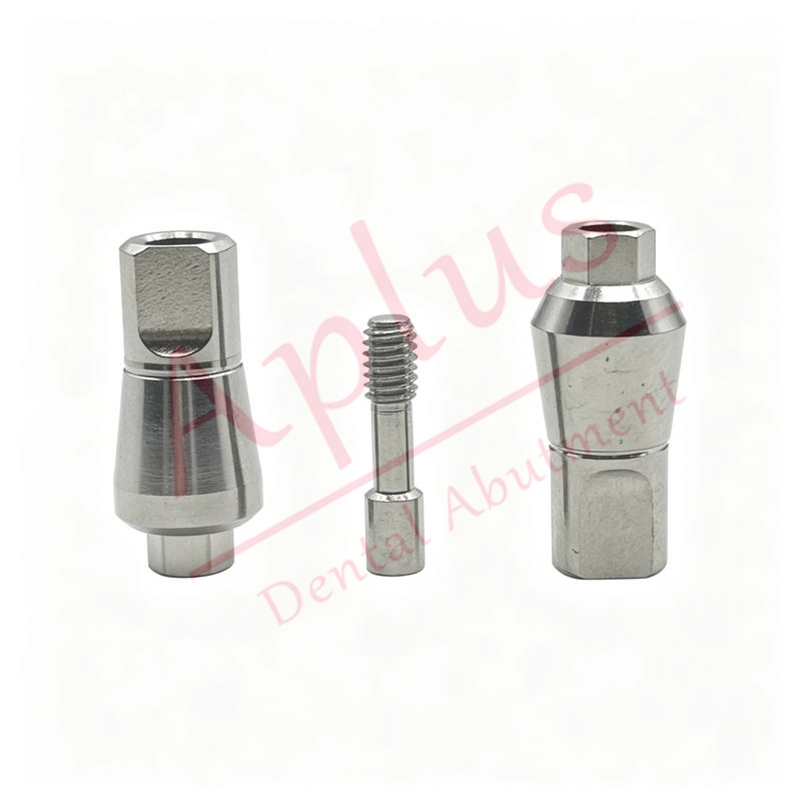

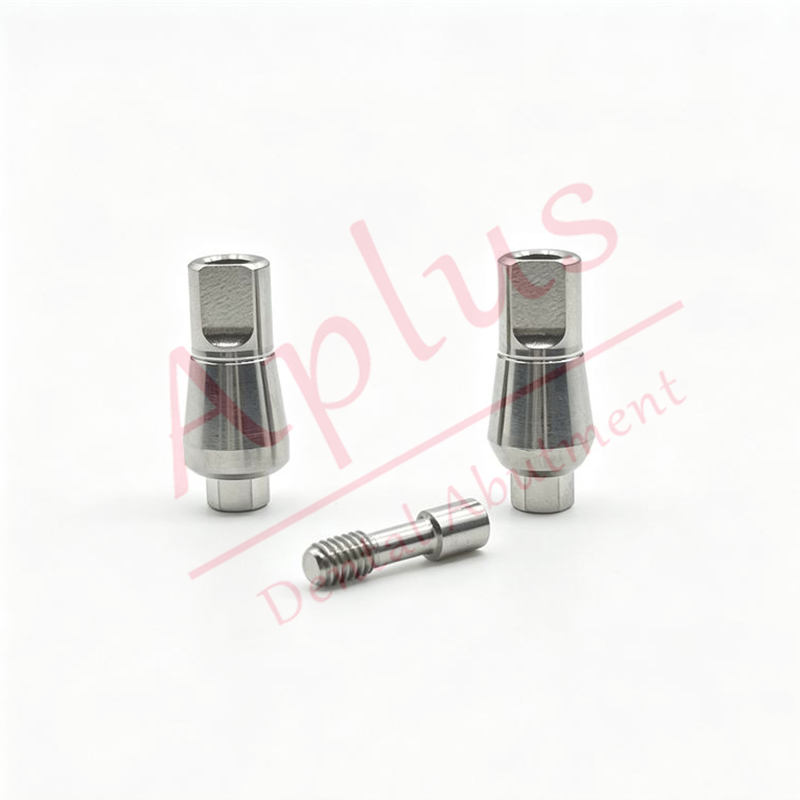

Zimmer TSV Hex -Lock Abutments Dental Implant Zimmer Tapered Screw-Vent Prosthetics Titanium Straight Abutment
Selecting a Hex-Lock Abutment:
• Determine the size of implant platform.
• Select the emergence profile that best suits the site being restored.
The profile should match the Healing Collar and Transfer used.

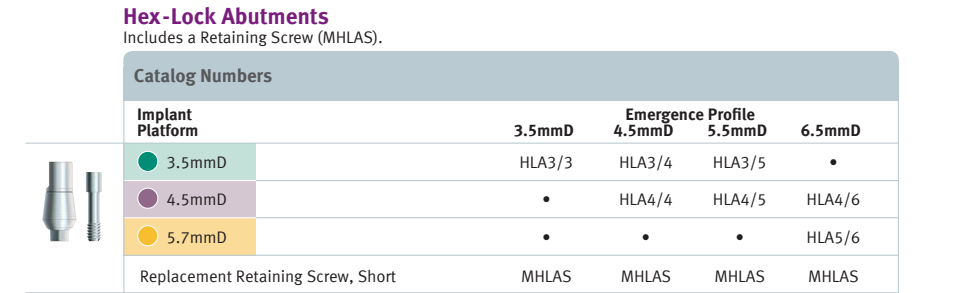

HLA3 = 3.5mmD (Implant Platform) Hex-Lock Abutment
HLA4 = 4.5mmD (Implant Platform) Hex-Lock Abutment
HLA5 = 5.7mmD (Implant Platform) Hex-Lock Abutment
/3 = 3.5mmD Wide Emergence Profile
/4 = 4.5mmD Wide Emergence Profile
/5 = 5.5mmD Wide Emergence Profile
/6 = 6.5mmD Wide Emergence Profile
Preparation guidelines:
The abutments have one score line placed 4.7mm above the top of the implant.
When using the MHLAS Screw (included with the abutment), the maximum preparation
on the abutment is 1mm below this line. If using the taller HLTS2 Screw (sold separately),
do not prepare below the score line in order to preserve adequate hex engagement
with the screw.
